تفاصيل المنتج
Place of Origin: CHINA
اسم العلامة التجارية: XINYUN
إصدار الشهادات: CE
Model Number: XY-BT-298
شروط الدفع والشحن
Minimum Order Quantity: 1 SET
الأسعار: 31000 USD
Packaging Details: Standard export wooden pallet
Delivery Time: 30-40 days
Payment Terms: T/T
Supply Ability: 500 sets per year
Warranty: |
1 year |
Power Supply: |
11KW 380V, 50Hz |
Condition: |
New |
Speed: |
50-80 boxs/min ( according to size) |
Finished products: |
facial tissue |
Weight: |
2T |
Processing type: |
Facial Paper Packing Machine |
After-sales service provided: |
Engineers available to service machinery overseas,Video technical support,Online support,Field maintenance and repair service,Field installation |
إصدار الشهادات: |
CE |
Product type: |
Facial tissue packing machine |
Warranty: |
1 year |
Power Supply: |
11KW 380V, 50Hz |
Condition: |
New |
Speed: |
50-80 boxs/min ( according to size) |
Finished products: |
facial tissue |
Weight: |
2T |
Processing type: |
Facial Paper Packing Machine |
After-sales service provided: |
Engineers available to service machinery overseas,Video technical support,Online support,Field maintenance and repair service,Field installation |
إصدار الشهادات: |
CE |
Product type: |
Facial tissue packing machine |

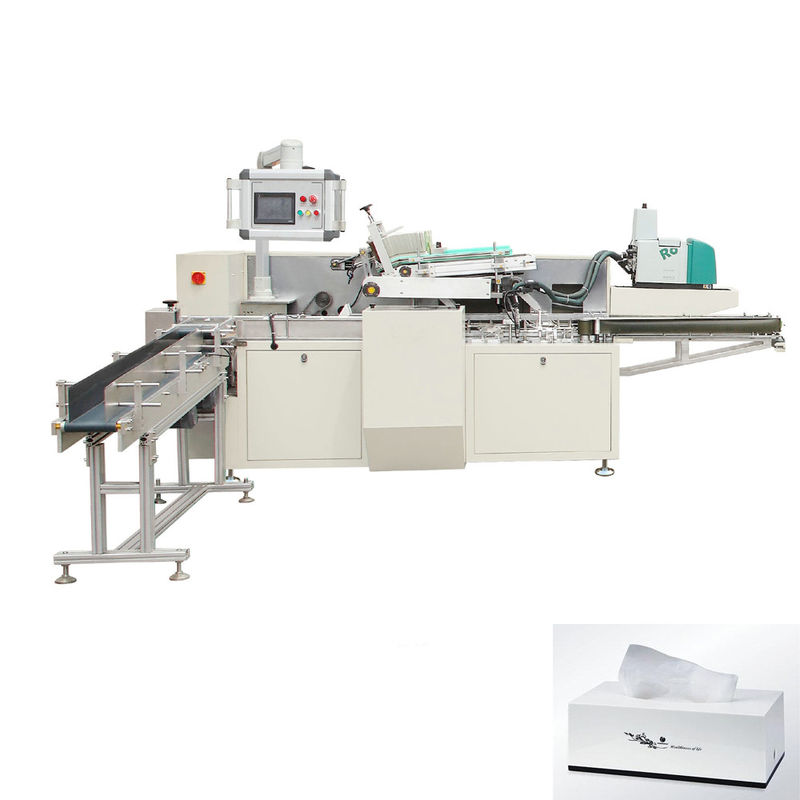

Good price carton box facial tissue paper packing machine
It is suitable for packing facial tissue paper and other related similar content compact with automatic leaflet folding, box opening and loading, then sealing the box.
It adopts PLC control, photoelectricity supervision to coordinate with every parts. Automatic stop and trouble display when machine running exceptional in order to solving troubles in time. This machine can be used separately, and also can connect with facial tissue log saw cutting machine on line.
Features:
1. Rejection automatically if no products, nonstandard height or lack of leaflet.
2. Stop automatically if incorrect position of products into carton.
3. Stop automatically if no cartons or out of leaflets continuous.
4. Easy to change to different products.
5. Protecting automatically for overloading.
6. Automatically displaying device for speed and finished products counting.
|
|
Specification |
||
|
Packing speed |
50-80 box/minute |
||
|
Packing material |
Box requirement |
300-450g/㎡ |
|
|
|
Size of box (L x W x H) |
(110-240)mm X (60-160)mm X (20-120)mm |
|
|
Air compressor |
Air supply |
0.5-0.8mpa |
|
|
|
Air consumption |
180-220L/min |
|
|
Power |
8kw 380V 50HZ |
||
|
Hot Melt Machine Power: |
1.8kw |
||
|
Machine noise |
<70 dB |
||
|
Overall dimension (L x W x H) |
3600x1600x1700mm |
||
|
Weight |
2000kg |
||
After Sales Service
(1), All our machine will have Two years guarantee
(2), Within two year after receiving our machines, Under right operation and non-artificial reasons, If there are any damaged parts or accessories, We will replace them by DHL or Fedex immediately FREE OF CHARGE.
(3), After two year warranty, Spare parts and damaged parts will be charged at cost price. If there is something wrong with the machine, We are responsible to solve this problem soonest, and help customers to restore production as soon as possible.
(4), After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food ,transportations and accommodation in buyer's city.
